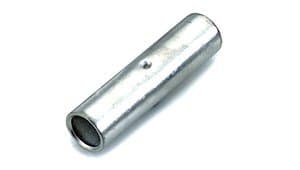

Copper Cable Crimping Ferrules
Ferrules or Connectors are Electrical Accessories used for securely connecting or joining two power cables together. Power cables are entered from either side of ferrule and are crimped for secure connection. Ferrules are made of electrolytic copper. Ferrules come in bare or tin plated finish.
- Material: Cable Ferrule manufactured from Electrolytic Copper
- Range: Cable Range from 1.5 to 1000 mm2
- Finish: Lead Free Electro Tin Plated to prevent atmospheric corrosion
- Application : Used for termination & extension of copper conductors.
Copper Cable Crimping Ferrules:-
Copper Cable Crimping Ferrules size:-
| Cable Size mm2 |
Copper Cable Crimping Ferrules Dimensions – mm |
||
|---|---|---|---|
| A | C | J | |
| 1.5 | 3.7 | 1.8 | 12 |
| 2.5 | 4.0 | 2.4 | 15 |
| 4 | 4.8 | 3.1 | 15 |
| 6 | 5.5 | 3.8 | 15 |
| 10 | 6.2 | 4.5 | 20 |
| 16 | 7.1 | 5.4 | 20 |
| 25 | 8.8 | 6.8 | 32 |
| 35 | 10.6 | 8.2 | 36 |
| 50 | 12.4 | 9.5 | 40 |
| 70 | 14.7 | 11.2 | 45 |
| 95 | 17.4 | 13.5 | 45 |
| 120 | 19.4 | 15.0 | 45 |
| 150 | 21.2 | 16.5 | 55 |
| 185 | 23.5 | 18.5 | 60 |
| 240 | 26.5 | 21.0 | 80 |
| 300 | 30.0 | 23.5 | 85 |
| 400 | 36.5 | 28.5 | 85 |
| 500 | 39.0 | 30.0 | 100 |
| 630 | 45.0 | 35.0 | 110 |
| 800 | 50.6 | 39.0 | 150 |
| 1000 | 56.2 | 43.0 | 170 |
